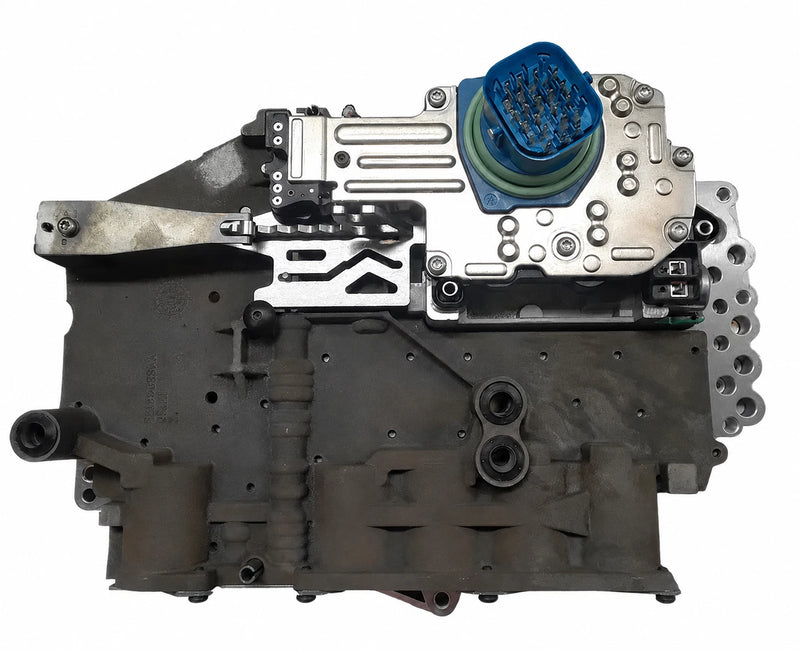

2019-Up Ram 2500 3500 68RFE Valve Body Blue Solenoid Block Tested

2019-Up 68RFE Transmission Valve Body with Blue Solenoid Block

This listing is for a complete 2019 and newer 68RFE automatic transmission valve body equipped with the blue-connector solenoid block.

This updated valve-body design is commonly used in select 2019-up Ram 2500 and Ram 3500 trucks equipped with the 6.7L Cummins diesel engine and 68RFE six-speed automatic transmission.

Every valve body is professionally cleaned, thoroughly inspected, and fully tested before shipment. The complete assembly is carefully checked to help ensure reliable hydraulic and electronic operation when installed in the correct transmission.

Professionally Cleaned and Inspected

Each valve body is thoroughly cleaned to remove old transmission fluid, varnish, clutch material, and other contamination that may interfere with proper valve movement or hydraulic operation.

The inspection process includes checking:

• Upper and lower valve-body castings

• Hydraulic passages and fluid channels

• Valves, spools, and springs

• Separator plates and gasket surfaces

• Accumulator components

• Solenoid mounting surfaces

• Electrical connectors and internal wiring

• Visible wear, cracks, damage, or contamination

Only valve bodies that pass our inspection and testing standards are approved for shipment.

Blue Solenoid Block Fully Tested

The included blue-connector solenoid block is inspected and tested for proper operation.

Testing includes:

• Solenoid electrical resistance

• Solenoid response and function

• Internal wiring continuity

• Electrical connector condition

• Pressure-switch operation

• Transmission range sensor operation

• TCC control-solenoid operation

• Reverse-control solenoid operation

• Shorts to ground or internal electrical faults

The valve body and solenoid block are tested together as a complete assembly to help provide dependable performance after installation.

Product Details

• Transmission: 68RFE

• Year range: 2019 and newer

• Blue-connector solenoid block

• Complete valve body with solenoids

• Includes components shown in the listing pictures

• Professionally cleaned

• Thoroughly inspected

• Electronically and functionally tested

• Guaranteed to work upon installation

• Lifetime replacement warranty

Important 2019-Up Identification

The 68RFE valve body was significantly changed for the 2019 model year. The updated design uses a blue electrical connector and has changes to the valve-body casting, separator plates, hydraulic circuits, solenoid functions, and lower valve-body section.

This unit does not replace earlier 68RFE valve bodies equipped with gray or white solenoid-block connectors.

Before ordering, verify that your original transmission has:

• A 68RFE transmission

• A blue-connector solenoid block

• The matching lower valve-body design

• Matching electrical connectors

• Matching separator plates and casting configuration

Vehicle year alone should not be used to guarantee compatibility. Trucks may have different transmissions depending on engine, model, drivetrain, production date, or previous transmission replacement.

Please message us with your VIN before purchasing so we can help verify compatibility.

Vehicle Applications

Fits select:

• 2019-up Ram 2500 with 6.7L Cummins diesel and 68RFE transmission

• 2019-up Ram 3500 with 6.7L Cummins diesel and 68RFE transmission

Not all Ram 3500 trucks use the 68RFE. Some applications may be equipped with an Aisin transmission, which uses a completely different valve body.

This valve body is not intended for Ram 4500 or Ram 5500 trucks unless the original transmission and valve-body configuration are positively identified as a matching 68RFE application.

Installation Requirements

Professional installation is strongly recommended.

Before installing the replacement valve body, inspect the transmission pan, filters, fluid, internal wiring, external wiring, cooler, and cooler lines. Any metal debris, clutch material, or heavy contamination remaining in the transmission can damage the replacement valve body or cause the original problem to continue.

The transmission should be filled with the manufacturer-recommended ATF+4 fluid and adjusted to the proper level using the correct temperature-based filling procedure.

After installation:

• Clear all stored transmission codes

• Verify proper fluid level

• Inspect for wiring or connector problems

• Complete the required transmission relearn procedures

• Perform any necessary module programming or calibration procedures

Programming requirements can vary depending on which components were replaced and the vehicle’s existing calibration.

Please Note

This valve body is designed to correct problems caused by a defective valve body, sticking hydraulic valves, pressure-switch faults, solenoid problems, or related hydraulic-control issues.

It will not repair internal transmission damage such as:

• Burned or worn clutch packs

• Failed transmission pump

• Damaged gears or planetary components

• Torque-converter failure

• Excessive internal transmission wear

• Contaminated cooler lines

• Vehicle wiring problems

• Failed control modules

• Incorrect transmission programming

For the best results, the original cause of the transmission problem should be properly diagnosed and corrected before installation.
